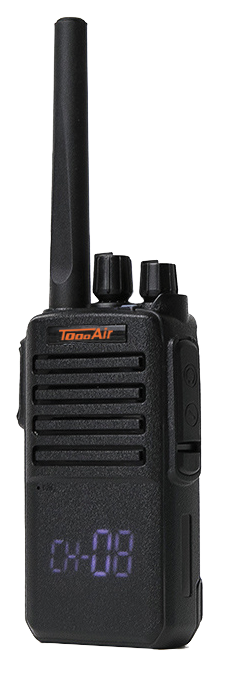

TA-CB01 UHF CB Radio

Unleash the Power of Compact Communication with the TA-CB01 UHF CB Radio

Packed with features, the TA-CB01 80 channel UHF CB is a powerhouse amongst its peers. The compact and lightweight design belie a powerful 5-watt transmitter and a high-level dynamic audio output. Ergonomically designed, the TA-CB01 promises strong and reliable communications when you need it. A hidden display provides a level of security and lessens battery drain. A large 1500mAh battery means assured communications over a long duty cycle, important considerations in remote areas or accessing distant repeater channels.

Incorporating cutting edge technology, the TA-CB01 remains intuitive and simple to use. The rotary channel selector makes channel selection fast and assured and a K1 connector allows additional human interfaces.

User Manual Brochure Our Price:

$135.00

–

Specifications | Click to Show/Hide

Model Number:	TA-CB01
Dimensions:	122mm x 60mm x 33mm
Weight:	221g
Working Temperature:	-30°C to +75°C
Ingress Protection:	IP54

Frequency Range:	477 MHz
Rated Voltage:	DC 7.4V (Li-ion battery)
Channel Memory:	80

Output Power:	≤ 5W
Max Frequency Deviation:	≤ ± 5KHz
Remanent Radiation:	< -60dB
Emission Current:	≤ 1000mA

Sensitivity:	< 0.16 µ V (12dB SINAD)
Silent Sensitivity:	< 0.2 µ V
Intel Modulation Anti - Interference:	50dB
Audio Frequency Power:	≥ 300mW
Receiving Current:	≤ 100mA
Silent Waiting:	20mA

Note: Due to continuous development, the above is subject to change without notice

5- Watt 80 Channel UHF CB

Hidden Display

1500mAh Battery

Rotary Channel Selector

K1 Speaker Microphone Connector

Drop-In Charger & Plug Pack

Compact & Lightweight

Loud Audio Output

Features

5-Watt 80 channel UHF portable radio

The powerful 5-Watt transmitter provides wide area coverage in the CB repeater network as well as strong point-to-point communications. The TA-CB01 works with the very latest Australian 80-channel UHF CB requirements.

Duplex/Extended range

A single press duplex / extended range button allows duplex repeater operations or talk around on the repeater TX frequency.

Hidden display

A hidden display offers a level of security and lessens battery drain. When lighted, the channel and other features are displayed in large easy to read sizes for fast recognition.

Low battery indicator

A low battery indicator means you’ll know exactly when the TA-CB01 needs to be recharged. The indicator is accurate and reliable.

1500mAh battery

A large Li-On battery means a long dutycycle. A battery of this size means assured communications when you need it most, especially in remote areas or when trying to access a distant repeater site.

Rotary channel selector and rotary volume knob

Boasting cutting edge technology, the TA-CB01 retains some very practical functionality including a rotary channel change knob. This means fast and assured channel selection. The volume knob also allows quick and easy volume settings

K1 speaker microphone connector

A K1 type speaker / microphone connector allows for connection of additional speaker microphone or other audio type interfaces. The input is dual jack sockets.

Loud audio output

The TA-CB01 offers high volume full dynamic range audio output. It is designed to deliver loud audio in noisy environments like a truck, or outdoors in industrial type settings.
