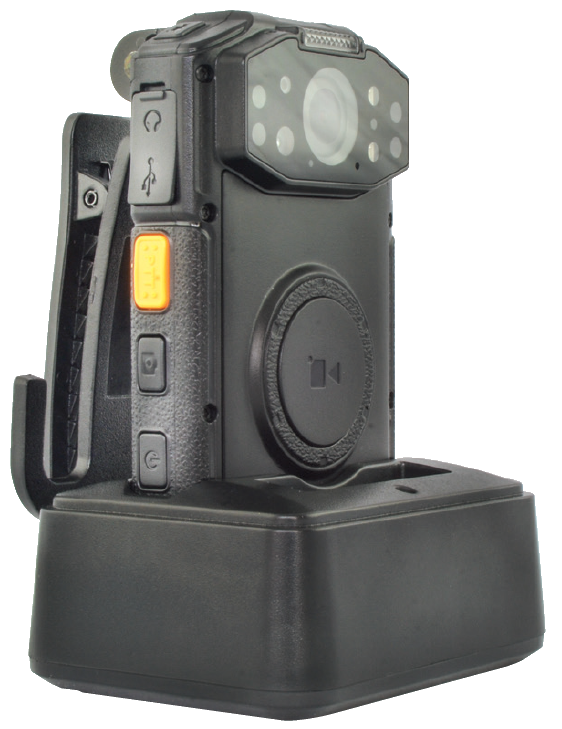

TC-500 Body Camera

High end compact body worn camera capable of both Push-To-Talk over Cellular connectivity and Live Video Streaming

Designed for extreme situational environments, the TC-500 body worn camera comes equipped with a large list of safety features and functionality. Once attached to the body, the device offers a strong “Big Brother” presence for operators in the field. The impressive list of features and functionality include; PTToC ToooAir connectivity, live video to dispatch streaming, SOS Alert, Missed Call Alert, Lone Worker, GPS tracking, Video & Audio recordings.

User Manual Brochure Our Price:
Specifications | Click to Show/Hide

Model Number:
Colours: Black
Dimensions: 103mm x 65mm x 18mm
Weight: 180g
Ingress Protection:
Audio Output:
Working Temperature:
-30°C to +55°C
WCDMA: Band 1/5/8
FDD-LTE: Band 1/2/3/4/5/7/8/17/20/28A/28B
TDD-LTE: Band 34/38/39/40/41
WiFi: WiFi IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
Bluetooth: 4.1 LE
Assisted GPS (A-GPS) / BD / GALILEO / GLONASS / Digital Compass / WiFi / Cellular
64GB Storage
Display: 3.1" Touch Screen
Camera: 32MP 1920x1080/1280x720/640x480
View Angle: ≥ 120 Degree
Recording Format: Video: MP4
Audio: WAV
Infrared Support: Up-to 10 Meters
Sensors: Ambient Light / Proximity / Accelerometer / Geomagnetic
SIM Card: Nano-SIM
Operating System: Android 8.1
Third Party Applications: Supported
Battery: 3200mAh
Working Time: 8 Hours
Standby Time: 20 Hours
Recharge Time: 2 Hours

Note: Due to continuous development, the above is subject to change without notice

Live Video Stream to Dispatcher

3200mAh Battery – 8 hours of Recording Time

GPS, NFC, Wi-Fi (2.4/5GHz), Bluetooth 4.1 LE

SOS Duress & Lone Worker Alert

Dedicated PTT, SOS, Video & Audio Record buttons

32MP Camera 1920x1080/1280x720/640x480

64GB Device Storage - 64 Hours Recording Time

Cloud Based Storage - Accessible by Dispatcher


Live Video Streaming & Recording

The body worn camera can record data internally and live stream simultaneously. From Dispatcher control the TC-500’s video feed can be streamed for remote video surveillance assistance. The live stream can be adjusted from 380p to 1080p depending on cellular connectivity, all video streams are recorded to the ToooAir cloud and are accessible via the Dispatcher.

Safety First

Built-in GPS for live fleet tracking, SOS broadcast alert (zoom to users’ location), Lone Worker alert, Geo-Fence, GPS, Video & Audio recordings for liability and track history checks.

Dedicated Buttons

The mounted body camera has easy to use external buttons to engage the powerful features of the device. Dedicated SOS alert, PTT, Video & Audio record, Camera, Torch, Vol +/- & Vol Mute and Infrared Mode buttons.


USB-MINI, Bluetooth 4.1 Low Energy, Wi-Fi (2.4/5GHz), Nano-SIM card 3G/4G/4GX, GPS (A-GPS), GLONASS, GALILEO, & BD.

Long Lasting Battery

With a battery size of 3200mAh and operational time of 8 continuous hours the unit will continue working for the entire work shift. In the event the battery needs to be swapped out the TC-500 has an internal battery for hot swappable battery packs. Each drop-in cradle supplied with the unit is capable of device charge + spare battery bay.

Ease of Backup

On-board the unit is 64GB of SD card storage, which offers 64 hours of video recordings. Every TC-500 comes with a drop-in cradle that can be used for both charging and data transfer. Connecting the cradle to a PC instantly gives access to the devices 64GB of data which can be downloaded to local hard drives.

Product Added to Cart

Proceed to Checkout Continue Shopping


PTToC Push-to-Talk over Cellular (PoC) is a technology offering VoIP two-way radio communication over a Wide Area utilising the cellular phone data networks.
